Applications of Parabolas

1. Braking Distance Formula

        The following table is taken from a Virginia Division of Motor Vehicles Manual and it shows the Reaction Distance, the Braking Distance, and the Totsal Stopping Distance at various speeds.
The Reaction Distance is the distance that your car travels from the time that the driver sees the need to do so until his foot hits the brake.
The braking distance is the distance that the car travels after the brakes are applied until it comes to a stop.
The Total Stopping Distance is the sum of the Reaction Distance and the Braking Distance.

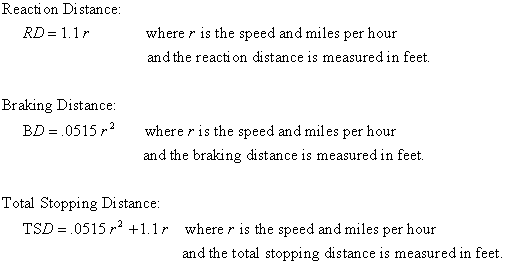

Here are the formulas to compute those distances:

Note that both the braking distance and the total stopping distance formulas are quadratic, and therefore their graphs are parabolas.


2. Heater

        Heaters are sold which make use of the relection property of the parabola. The heat source is at the focus and heat is concentrated in parallel rays. Have you walked by the parabolic reflector heater at COSTCO?

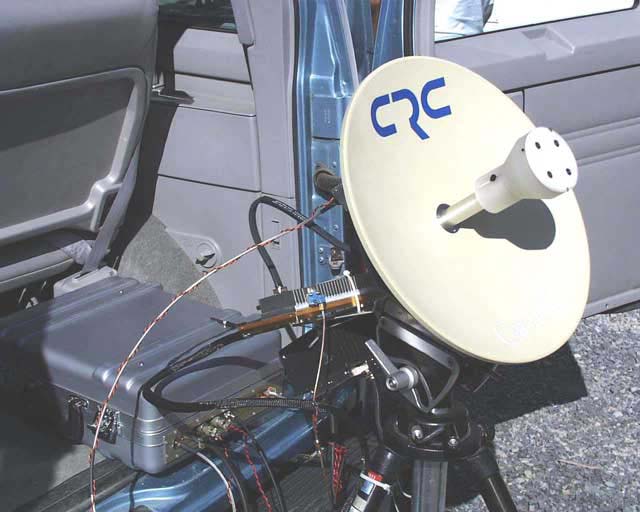

3. Satellite Dishes

        Satellite Dishes work on this same principle. Incoming waves are concentrated to the focus.


4. Automonbile Headlights

        An automobile headlight is another example of a Paraboloid of Revolution --
        taking a parabola and rotating it about its axis of symmetry.
        The smooth inner surface of the headlight is a glass reflector upon which
        bright aluminum has been deposited. This part is a powerful reflector.

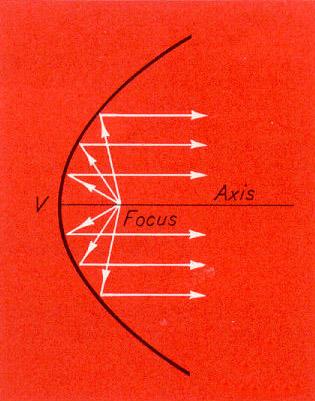

        A parabolic reflector has the property that if a light source is placed at the
        focus of the reflector, the light rays will reflect from the mirror as rays
        parallel to the axis.
        This is used in auto headlights to give an intense concentrated beam of light.

        For safer night driving, we do not want all the light rays to be parallel
        to the axis. Some light must be aimed far down the road, to the side, upward
        for signs or bridges.

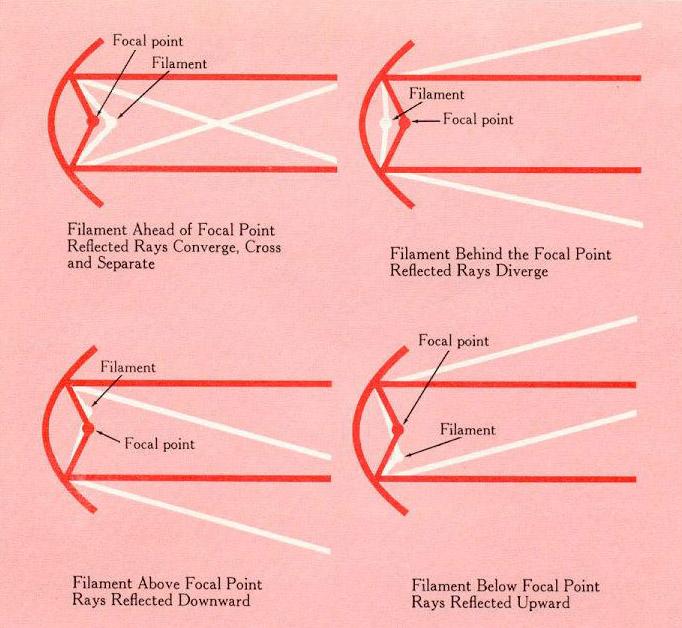

        So we offset the filament from the focus and change the beam entirely.
        In most of today's cars, a 4 Lamp System is used -- 2 filament sealed beam
        units in 2 lamps.
        The position of the filaments accomplishes most of the desired illumnination
        patterns. The rest is taken care of by special lenses which contain prisms
        to bend the light rays.


5. Comic Strips

        Look at the poor guy in this comic strip with his parabolic reflectors! Watch out who you get for your insurance company!


        Watch out for Parabolic Microphones -- you never know who is listening!

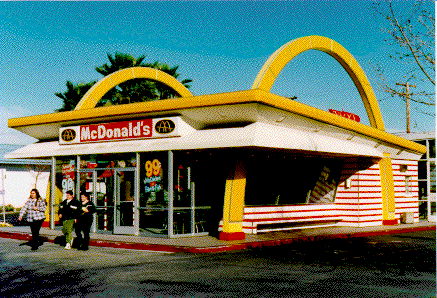

6. McDonald's Arches

        McDonald's Arches are parabolas.

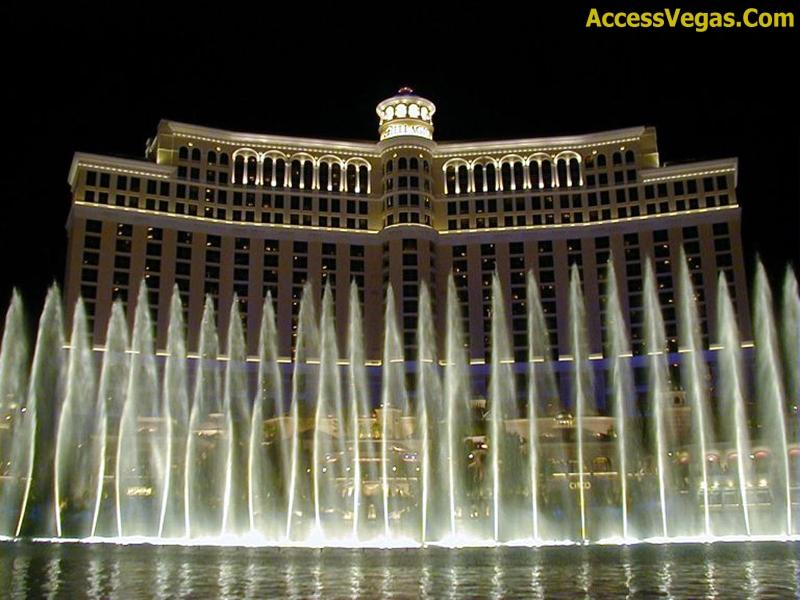

7. Fountains

        Bellagio's fountains at Las Vegas exhibit water in the shapes of parabolas.


8. Path of a Ball

        Gallileo was the first to show that the path of an object thrown in space is a parabola.

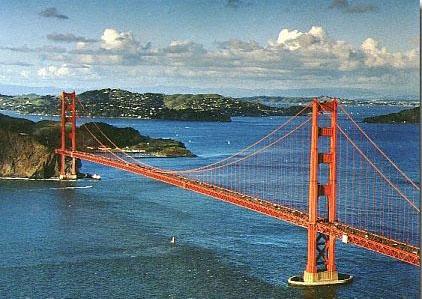

9. Golden Gate Bridge

        The cables that act as suspension are parabolas.

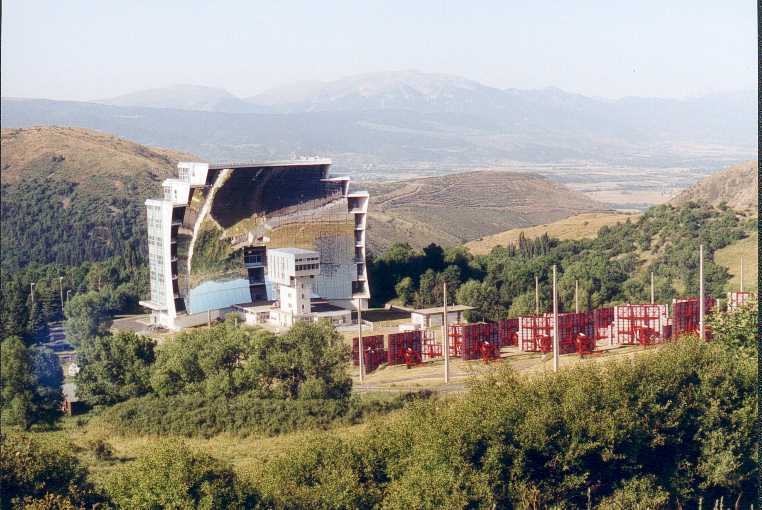

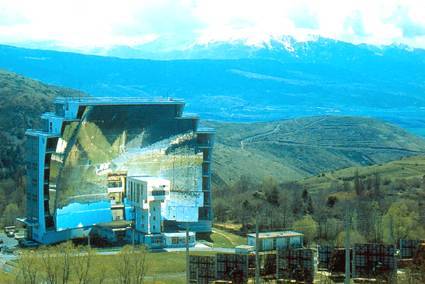

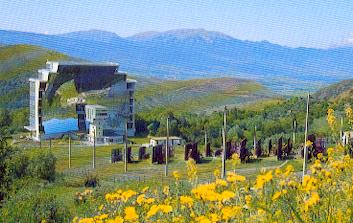

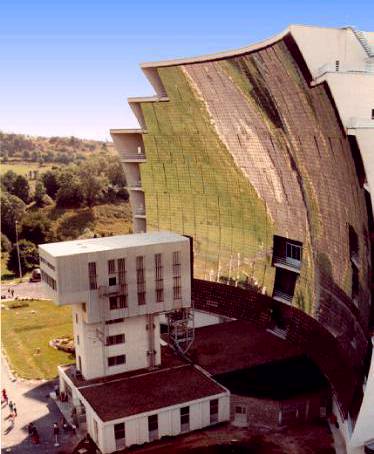

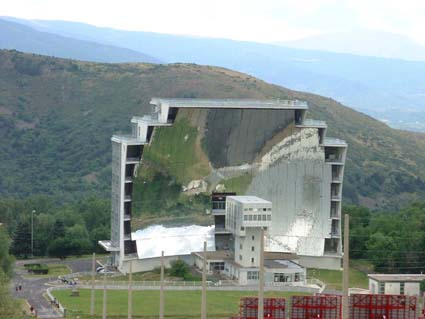

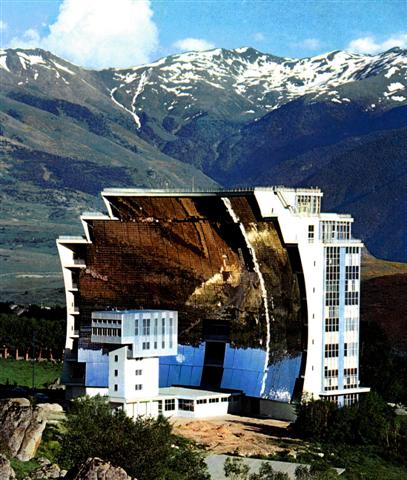

10. Le Four Solaire at Font-Romeur

        There is a reflector in the Pyrenees Mountains that is 8 stories high.
        It cost two million dollars to build and it took ten years to build it.
        It is made of 9,000 mirrors arranged in a parabolic mirror.
        It can reach 6,000 degrees Fahrenheit just from the Sun!

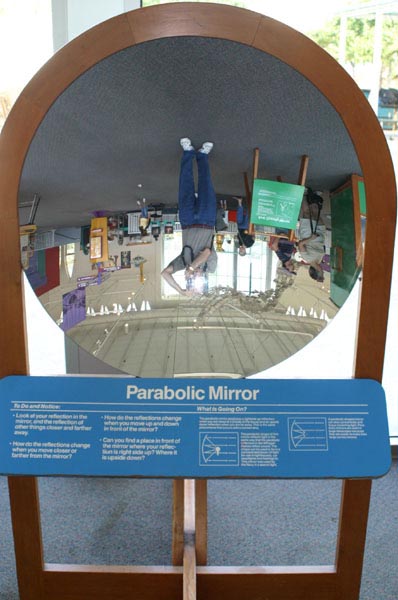

11. Parabolic mirror

        A parabolic mirror at the Seattle Science Museum.

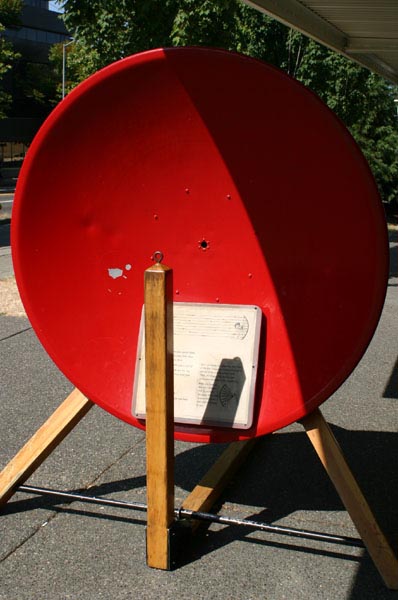

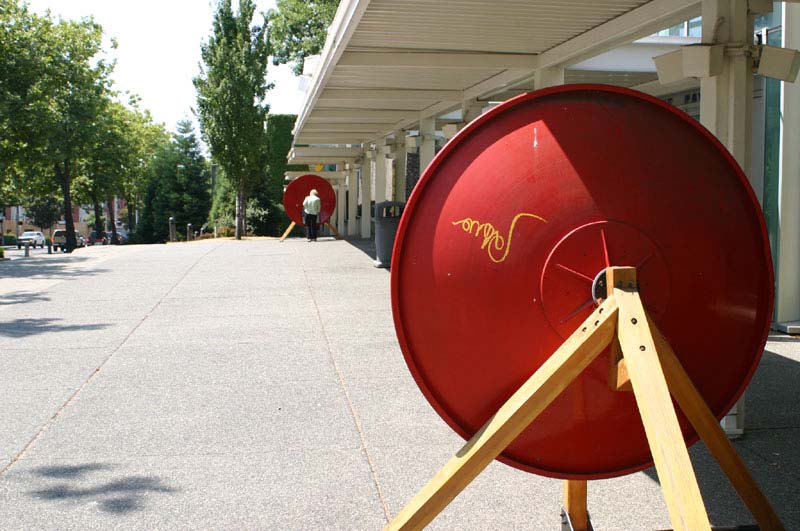

12. Parabolic Receivers

        A person who whispers at the focus of one of the parabolic reflectors can be heard by a person located near the focus of the other parabola.
