Application of Parametric Equations
by Paul Bourke

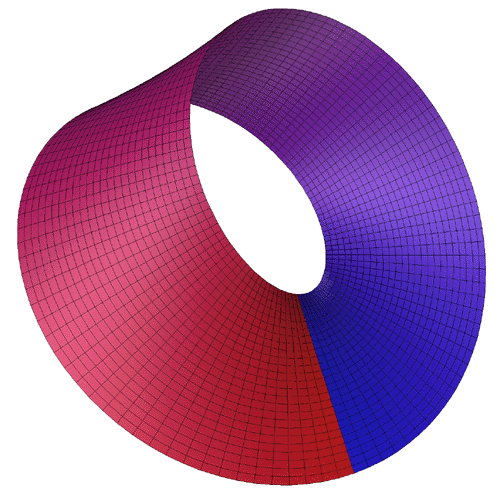

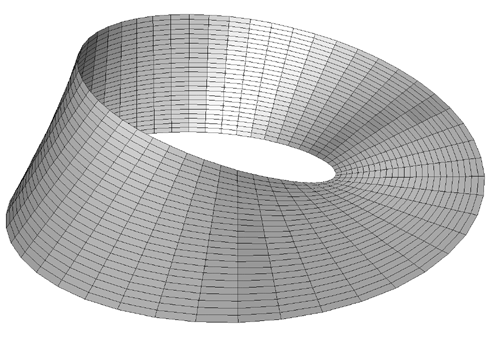

Example 1: The Mobius Strip

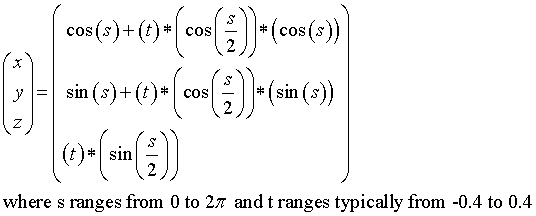

The Möbius stip is the simplest geometric shape which has only one surface and only one edge. It can be created by taking a strip of paper, giving it a half twist along its long axis, and then joining the two narrow ends together. The Möbius strip in 3 dimensions can be represented parameterically f(s,t) as follows:


Paul Bourke


Paul Bourke


M.C. Escher


M.C. Escher


M.C. Escher

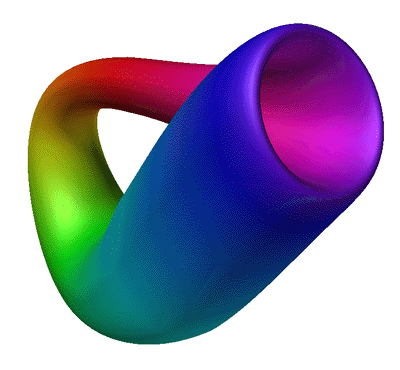

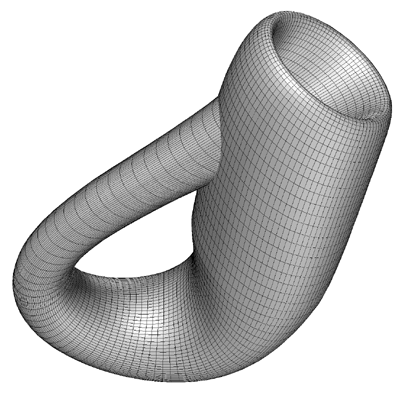

Example 2: The Klein Bottle

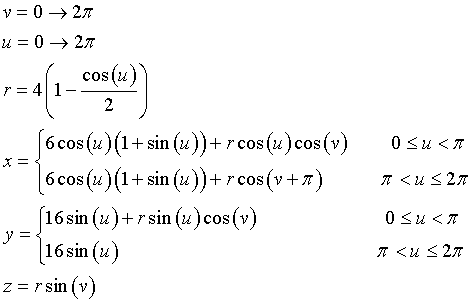

Most containers have an inside and an outside, a klein bottle is a closed surface with no interior and only one surface. It is not able to be constructed in 3 dimensions without intersecting surfaces. It can be realised in 4 dimensions. The classical representation is shown below. The Klein Bottle can be represented parameterically f(u, v) as follows:


Paul Bourke


Paul Bourke

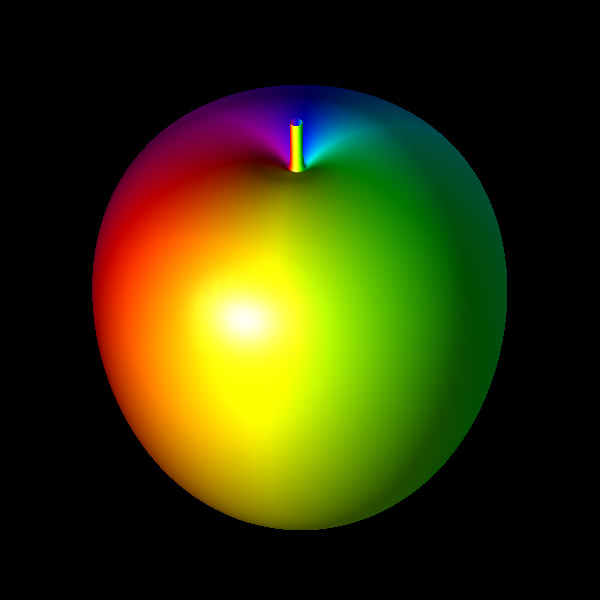

Example 3: Apple

The Apple Surface can be represented parameterically f(u,v) as follows:


Paul Bourke


Paul Bourke

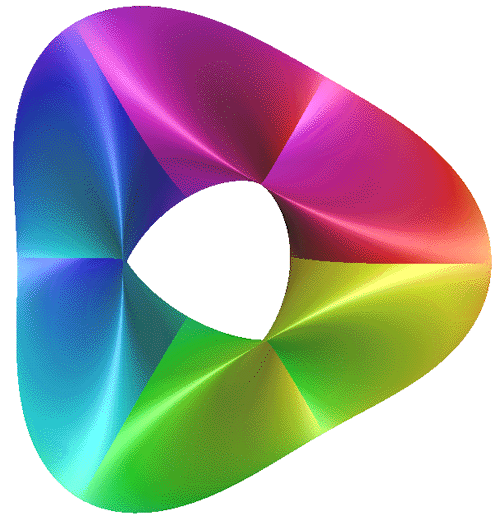

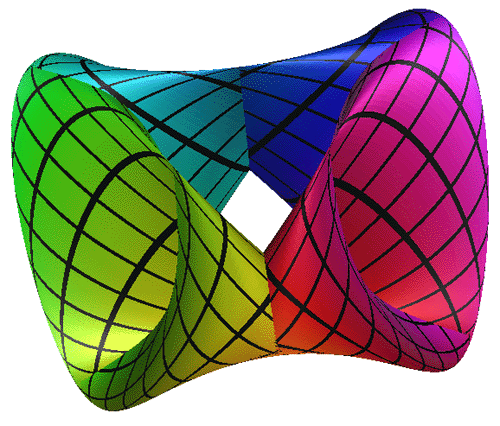

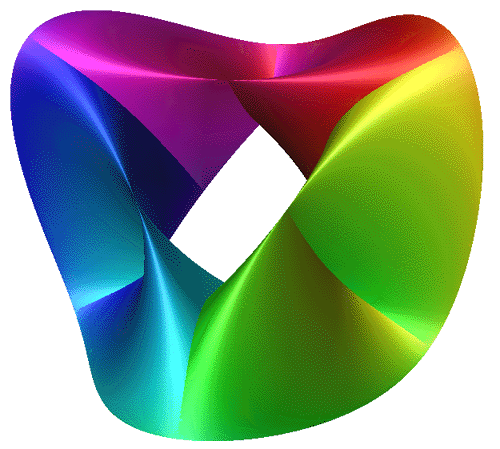

Example 4: The Triaxial Tritorus

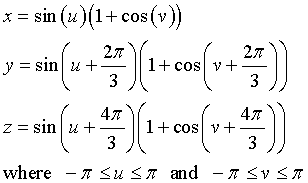

The Triaxial Tritorus is defined parameterically as follows:


Paul Bourke


Paul Bourke


Paul Bourke


Click here for Paul Bourke's computer graphics web page
to see many more computer generated pictures using parametric equations
