Lesson #112 Volumes of Solids of Revolution (Shell Method)


Quote of the Day:
"God is a child; and when he began to play, he cultivated
   mathematics.  It is the most godly of man's games."
   -- V. Erath

Objectives:
The student will compute the volume of solids of revolution
   using the washer method (slicing with a hole in it), the
   disk method, and the shell method.

The student will compute the volume of solids of revolution
   rotated about a line other than the x- or y-axis.


1. Collect homework.

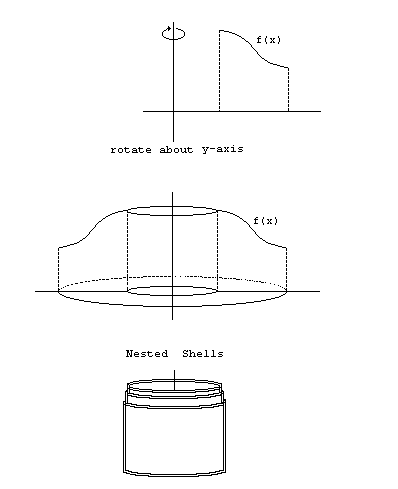

2. Shell Method
   Use the Shell Method if
(1) you have a function in terms of x and rotation is
    around the y-axis or
(2) you have a function in terms of y and rotation is
    around the x-axis.


   Find the volume of one shell and then add them up.

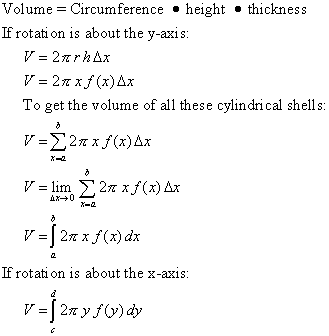

   To find the volume of a cylindrical shell, take the
   circumference of the circle, multiply it by the height
   to get the lateral surface area, then multiply by the
   thickness.  Then create a Riemann sum and take the
   limit.

3. To help see the shell method –
    (a) Bring in Russian stacking dolls (Use the lower half
        of the dolls – they look like shells).

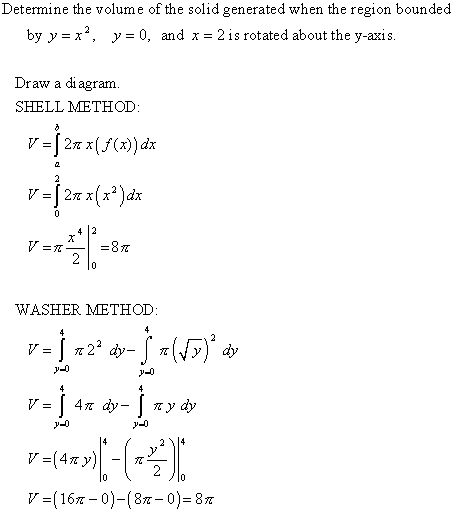

(b) Use megaphones (c) Use margarine tubs (d) use cup-cake wrappers 4. Example:

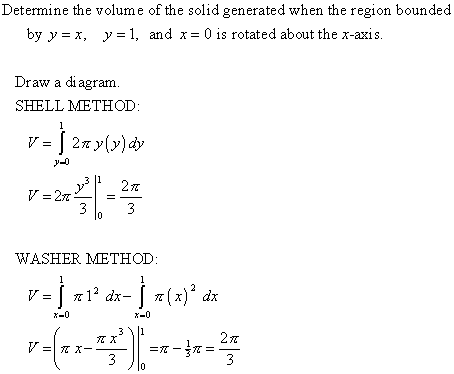

5. Example:


6. Distribute Quiz on Volumes of Solids of Revolution
7. Click here for visualization of Solids

8. Assignment:
   Finish p. 456 (2, 5, 11, 22, 25, 35, 36)
