Objectives:
The student will determine the area under a curve by
   summing up rectangles.

1. Collect Homework.

2. Today, we will find areas under curves (i.e., between
   the curve and the x-axis).  We will sum up the areas of
   rectangles which approximate the area under the curve.
   We will use several different techniques:
     (1) Using the left-hand endpoints
     (2) Using the right-hand endpoints
     (3) Using inscribed rectangles
     (4) Using the circumscribed rectangles

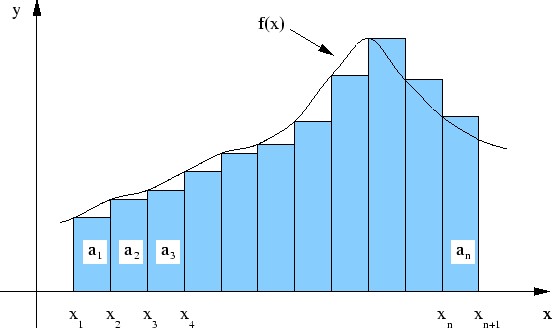

   The figure below shows how to compute the area under the
   curve by using the left-hand endpoints.

  What happens as we increase the number of rectangles?

3. Example:
   Determine the area under the curve y = x + 1 on the
   interval [0, 2] in three different ways:
      (1) Approximate the area by finding areas of
          rectangles where the height of the rectangle is
          the y-coordinate of the left-hand endpoint
      (2) Approximate the area by finding areas of
          rectangles where the height of the rectangle is
          the y-coordinate of the right-hand endpoint
      (3) Find the exact area under the curve using
          geometry

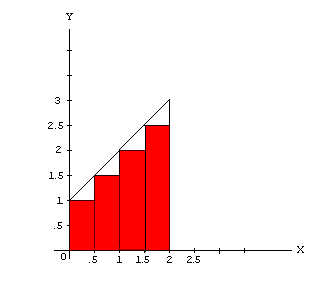

    #1 Using left hand endpoints and 4 rectangles:
       (in this example, these are also called
        inscribed rectangles)

           Area = (.5)(1) + (.5)(1.5) + (.5)(2) + (.5)(2.5)
                =  .5 + .75 + 1 + 1.25 = 3.5 square units

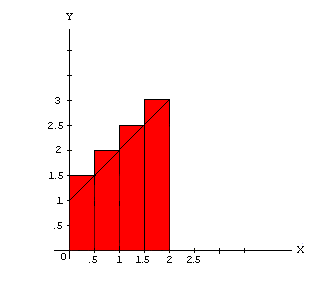

    #2 Using right hand endpoints and 4 rectangles:
       (in this example, these are also circumscribed
        rectangles)

           Area = (.5)(1.5) + (.5)(2) + (.5)(2.5) + (.5)(3)
                = .75 + 1 + 1.25 + 1.5 = 4.5 square units

        #3 Click here for an interactive link to Riemann Sums (Then click on Integral Machine)
              Click here for another interactive link to Riemann Sums

    #4 Using geometry to find the exact area under the
       curve:

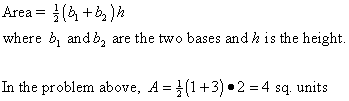

           The figure is a trapezoid, so use the formula
           for the area of a trapezoid:

           Area = Average of the Bases x Height  or

   Note that the average of the first two methods (the
   inscribed and circumscribed rectangles) gives the exact
   area under the curve.  This only works because the curve
   is a straight line.

4. Later in the year, we will use other numerical methods
   to find areas under curves – Simpson's Rule and the
   Trapezoidal Rule.  Simpson's Rule uses parabolas to
   approximate the area under the curve and the Trapezoidal
   Rule uses trapezoids to approximate the area.

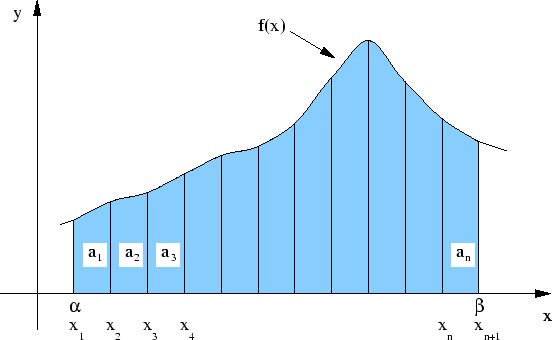

   In general, if we wish to determine the area under the
   following curve,

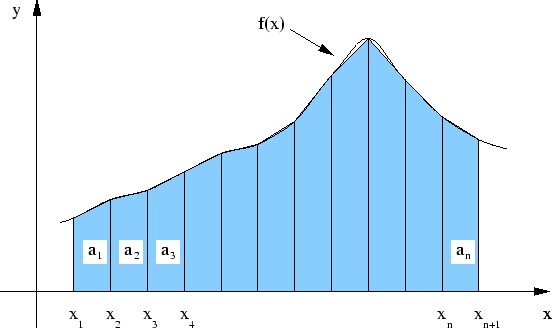

   we could approximate it with rectangles like we did
   above or we could approximate it with trapezoids like in
   the diagram below:

   Notice that the trapezoidal approximation gives a more
   accurate answer than the rectangular approximation.

   Tomorrow, we will determine the exact area under the
   curve by increasing the number of rectangles and then
   applying a limit.

5. Assignment
   Read pages 349-354
   Page 382 (1, 3, 5, 7) use n = 6
