Hexaflexagon Worksheets
|
You should have a strip of 25 triangles.
You need exactly 19 perfect triangles, so use the last
19 that you folded. Cut off the first triangles.

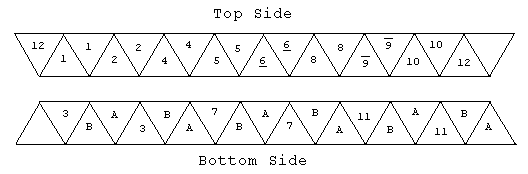

Lay the strip on your desk in the position shown below and
number your triangles IN PENCIL just as they are shown.
The two blank triangles will be the two that you glue together.
Begin folding the hexaflexagon by placing the two faces numbered with a "1" together. Keeping those two faces together, now place the "2" on the other "2." Continue in this manner placing the two "3"s together, then the two "4"s, the two "5"s, and so on (in order). It shown form a hexagon. Glue the two blank triangles together.
Now you are ready to "flex" your hexaflexagon.
In order to find all 6 sides, continue to flex at one vertex until
the hexaflexagon refuses to open. Then move to an adjacent vertex
(either way) and continue flexing at that vertex until the

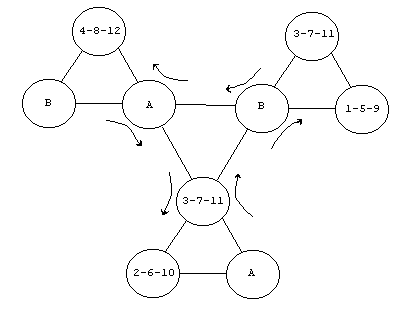

hexaflexagon refuses to open. The diagram below shows one way to
traverse the six sides.
Notice that although you drew 6 patterns, there are many more actual
designs (since the triangular parts of the hexagon appear in different
orientations as you flex the model.
|
