Part 1:

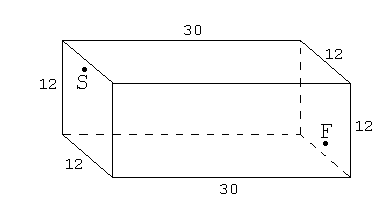

There is a rectangular room whose dimensions are 30' long
by 12' wide by 12' high. A spider is located on one of
the 12'x12' end walls 1' down from the ceiling and 6' from
each side wall. A fly is located on the opposite 12'x12' wall
1' up from the floor and 6' from each side wall.
The spider desires to dine on the fly which is asleep. Determine the
shortest route that the spider may follow to get to the fly
(the spider must always be touching one of the 4 walls, the ceiling,
or the floor). The shortest route is defined to be the least number
of feet from S to F.
Part 2:

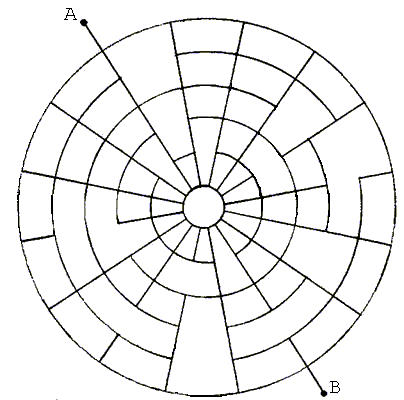

Another spider desires to dine on another fly. The
spider begins at point A and must travel along the paths
of her web to get to the fly at point B. To work up an appetite
for dinner, the spider decides to challenge herself by turning either
left or right at every intersection
including the ones encountered right at the start and finish (points
A and B), never going straight across. Still, she is eager to get to
Mr. Fly, so she determines to take the shortest route. Can you help her
find the shortest route to dinner? The shortest
route is determined by the least number of turns made to get from A to B.
