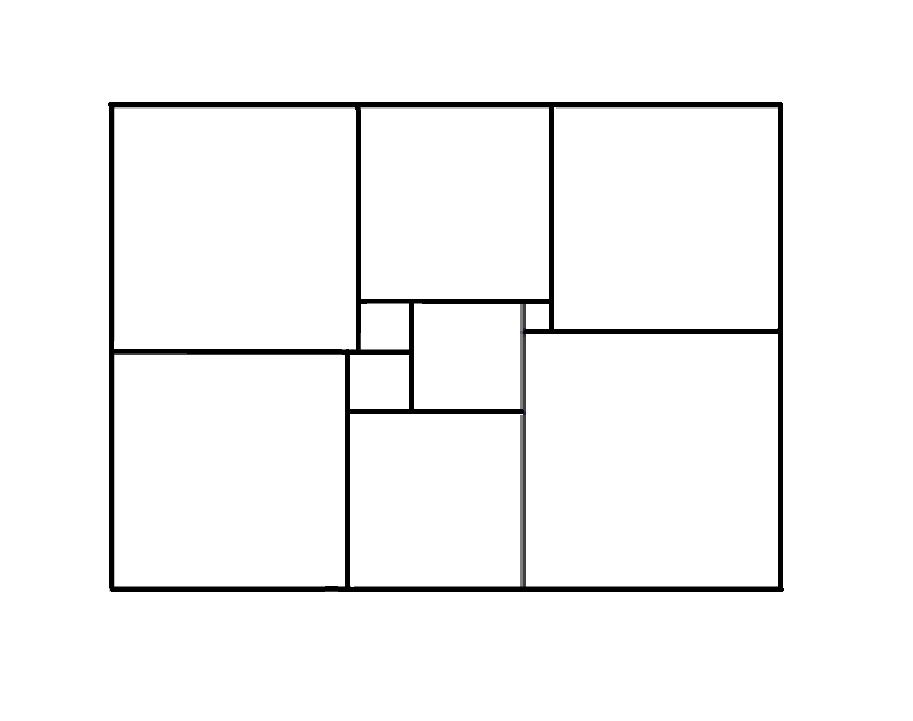

In the diagram below, there is a rectangle made of 10 squares, each of a different size. If the dimensions of the two smallest squares in the figure are 3x3 and 5x5, can you determine the dimensions of all the other squares?
You must show your algebra to get credit!
Click here for a printer version of this puzzle
Solution to the Problem:

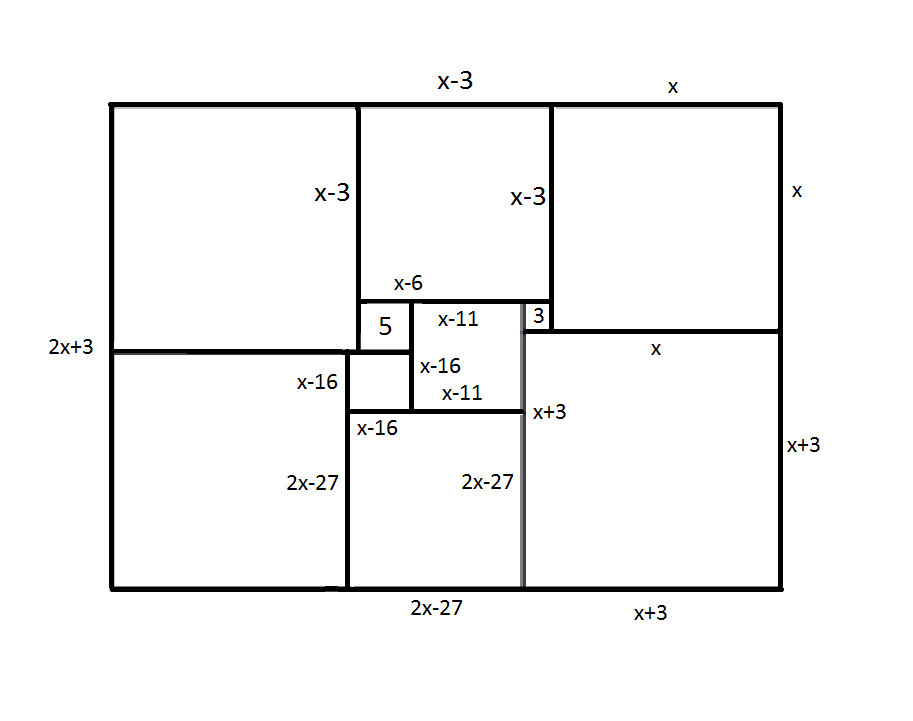

The dimensions of the squares are 3x3, 5x5, 6x6, 11x11, 17x17, 19x19, 22x22, 23x23, 24x24, and 25x25.To solve, let x = the length of the segment indicated in the diagram below. Then represent the lengths of other segments in the diagram in terms of x.
Since the opposite sides of a rectangle are congruent, you can solve for x by setting the two expressions equal to each other:
(2x - 27) + (x - 16) + 5 + (x - 3) = x + (x + 3)
4x - 41 = 2x + 3
2x = 44
x = 22
Now go back and substitute 22 for x in all the expressions for the sides.

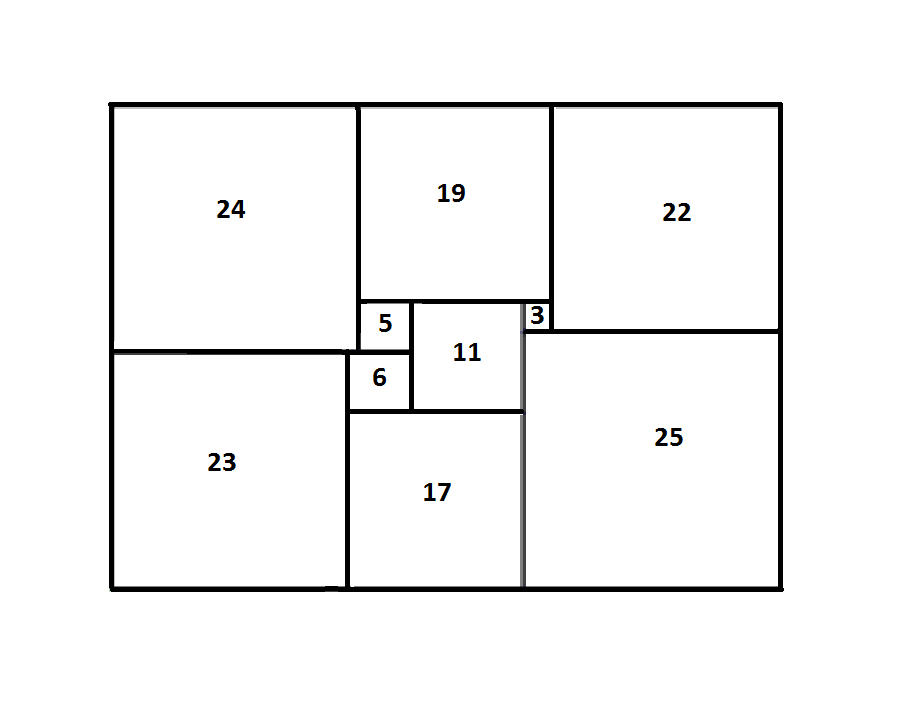

Here is the complete solution.
The dimensions of the rectangle are 65 x 47.
Click here to download Sreeroopa Sankararaman's very colorful solution
