Lesson #161 Introduction to Polar coordinates


Quotes of the Day:
"A mathematician is a blind man in a dark room looking for
   a black cat which isn't there." -- Charles Darwin
   (quoted by Jaime Escalante in the film, STAND and
    DELIVER)

Objectives:
The student will plot points in the polar coordinate system.


1. Plotting Points
   Ask: How do you plot a point?

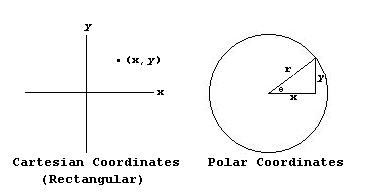

        In the Cartesian Coordinate System,
        you plot an x-coordinate, then a y-coordinate.
        Points are written as ordered pairs (x, y).

        But there are other coordinate systems:
        In the Polar Coordinate System, you plot
        an angle and a radius.
        Points are written as (r, theta).



    In Polar Coordinates, r is a directed distance.
           theta is the angle from the positive x-axis and
           measured in a counter-clockwise direction.

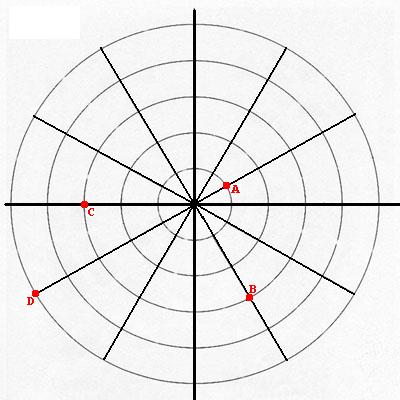

2. Examples of plotting points in the Polar Coordinate
   System:

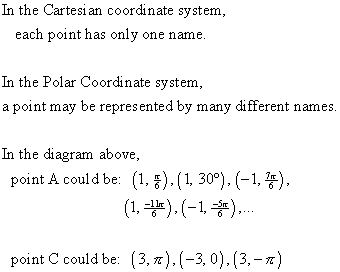

   Give some names for points B and D.
   For each point, give 4 different names in the form:
     (+, +), (+, -), (-, +), and (-, -).


3. Play Tic-Tac-Toe or "Connect Four" with Polar Coordinates.

   Split the class into two teams.

   The object of the game is to get four in a row --
     along a radius, along a circle, or "diagonally."

   Take turns having students give coordinates.

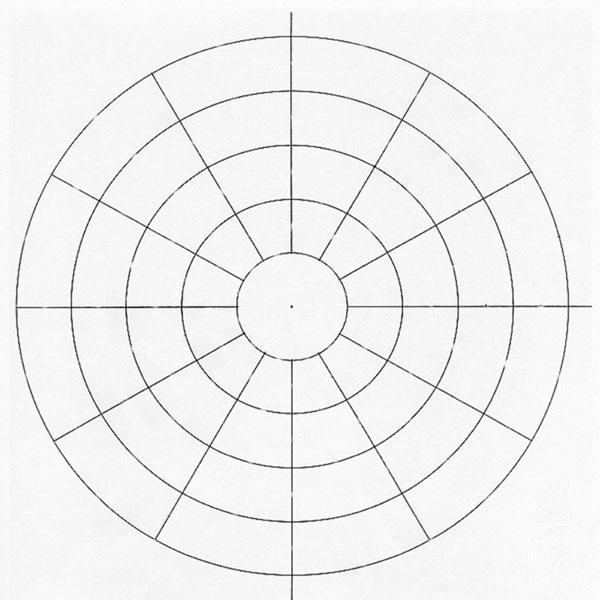

   Here is the Game Board:



Click here for a Game Board which can be printed
